COMPRESSOR PRODUCTS :

TECHNICAL SPECIFICATIONAE 2410Y

PRINCIPAL DIMENSIONS - MM

A: 184 mm.

B: 263 mm.

C: 155 mm.

D: 165 mm.

E: 102 mm.

HERMETIC COMPRESSOR AE 2410Y

BOM ID : S37-A0

Electrical : 220-240 Volt 50 Hz 1 Phase 270 / - HP

View Full Information : PDF Download

Nominal Performance

Cooling Capacity

270 / - Watts

921 / - BTU/Hr

232 / - Kcal/Hr

Power Input

225 / - Watts

Lock Rotor Amps

11 / - Amps

Max Continuous Current

- / - Amps

Rated Load Amps

2 / - Amps

COP

1 / - Watts / Watts

Testing Conditions

Condensing Temperature

54.40 °C 129.92 °F

Evaporating Temperature

-23 / - °C -10 / - °F

Liquid Temperature

32.20 °C 89.96 °F

Return Gas Temperature

32.20 °C 89.96 °F

Ambient Temperature

32.20 °C 89.96 °F

Application

Evaporating Range

LBP

: -40.00 °C to -12.20 °C (-40.00 F to 10.04 °F)

Heat Pump

: - to - (- to -)

S37-A0

HERMETIC
COMPRESSOR
AE 2410Y
BOM ID : S37-A0
Low Torque Start

PRINCIPAL DIMENSIONS - MM

A: 184 mm.	B: 263 mm.	C: 155 mm.	D: 165 mm.	E: 102 mm.

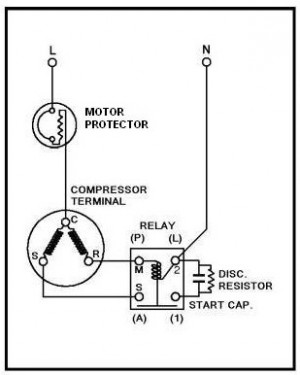

SCHEMATIC WIRING DIAGRAM C.S.I.R.

-

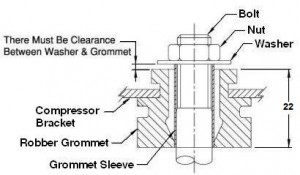

MOUNTING KIT

-

Electrical : 220-240 Volt 50 Hz 1 Phase 270 / - HP
Nominal Performance
Cooling Capacity		270 / - Watts
		921.24 / - BTU/Hr
		232.17 / - Kcal/Hr
Power Input		225 / - Watts
Lock Rotor Amps		11 / - Amps
Max Continuous Current		- / - Amps
Rated Load Amps		2 / - Amps
COP		1 / - Watts / Watts
EER		4 / - Watts / Watts
Testing Conditions
Condensing Temperature	54.40 °C		129.92 °F
Evaporating Temperature	-23.30 / - °C		-9.94 / - °F
Liquid Temperature	32.20 °C		89.96 °F
Return Gas Temperature	32.20 °C		89.96 °F
Ambient Temperature	32.20 °C		89.96 °F
Application
Evaporating Temp. Range	LBP		-40.00 °C to -12.20 °C
			(-40.00 F to 10.04 °F)
	Heat Pump		- to -
			(- to -)
Refrigerant	R134a
Refrigerant Flow Control	Capillary Tube
Compressor Cooling	Fan
Compressor and Motor data
Compressor Type		Reciprocating
Displacement		9.42 cc.
Oil Type		Polyolester Oil
Oil Charge		300 cc.
Motor Type		C.S.I.R. ; 2 Pole 2,850 / - r/m
Voltage Range		187-264/- Volts 50/- Hz.
Winding Resistance at 25 ° C
Start		33.5 Ohms
Run		6.5 Ohms
Weight with Oil		10.33 Kg.
Weight with Oil and Accessories		10.78 Kg.
Electrical Components
Motor Protector
Type		External 3/4" Kg.
Model Number		KME660-7/C Kg.
Open / Close		90-100 / 70-52 ° C
1st Cycle trip at 25 ° C		10.2 Amps(main) - Amps(start)
Motor Starter
Type		Current Relay
Model Number		KME684-12
Pick Up (max.)		4.6 Amps
Drop Out (min.)		4 Amps
Terminal Cover		4040KMD901-12
Start Capacitor		36-43 µF 330 VAC.
Disch Resistor for Start Cap		15000 Ohms 2 W
Run Capacitor		- µF - VAC.
Mounting Kit
Rubber Grommet		4007KMD905-3
Sleeve Grommet		3KMD903-2-Z
Washer		4023KEB387

Since we are constantly improving our product , the
specification are subject to change without notice.

REV. DATE 2015-07-02 C / N No. 0283/15

Certificate Marks

COMPRESSOR PERFORMANCE TABLE
