COMPRESSOR PRODUCTS :

TECHNICAL SPECIFICATIONAE 1370Y

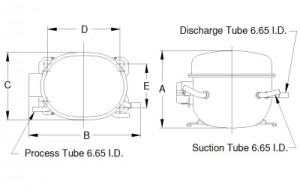

PRINCIPAL DIMENSIONS - MM

A: 183 mm.

B: 270 mm.

C: 155 mm.

D: 165 mm.

E: 102 mm.

HERMETIC COMPRESSOR AE 1370Y

BOM ID : S17-A1

Electrical : 220-240 Volt 50 Hz 1 Phase 186 / - HP

View Full Information : PDF Download

Nominal Performance

Cooling Capacity

186 / - Watts

635 / - BTU/Hr

160 / - Kcal/Hr

Power Input

160 / - Watts

Lock Rotor Amps

13 / - Amps

Max Continuous Current

- / - Amps

Rated Load Amps

1 / - Amps

COP

1 / - Watts / Watts

Testing Conditions

Condensing Temperature

54.40 °C 129.92 °F

Evaporating Temperature

-23 / - °C -10 / - °F

Liquid Temperature

32.20 °C 89.96 °F

Return Gas Temperature

32.20 °C 89.96 °F

Ambient Temperature

32.20 °C 89.96 °F

Application

Evaporating Range

LBP

: -34.40 °C to -12.20 °C (-29.92 F to 10.04 °F)

Heat Pump

: - to - (- to -)

S17-A1

HERMETIC
COMPRESSOR
AE 1370Y
BOM ID : S17-A1
Low Torque Start

PRINCIPAL DIMENSIONS - MM

A: 183 mm.	B: 270 mm.	C: 155 mm.	D: 165 mm.	E: 102 mm.

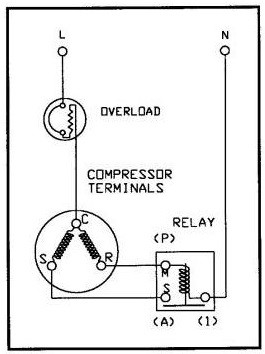

SCHEMATIC WIRING DIAGRAM R.S.I.R.

-

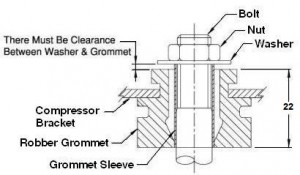

MOUNTING KIT

-

Electrical : 220-240 Volt 50 Hz 1 Phase 186 / - HP
Nominal Performance
Cooling Capacity		186 / - Watts
		634.63 / - BTU/Hr
		159.94 / - Kcal/Hr
Power Input		160 / - Watts
Lock Rotor Amps		13 / - Amps
Max Continuous Current		- / - Amps
Rated Load Amps		1 / - Amps
COP		1 / - Watts / Watts
EER		4 / - Watts / Watts
Testing Conditions
Condensing Temperature	54.40 °C		129.92 °F
Evaporating Temperature	-23.30 / - °C		-9.94 / - °F
Liquid Temperature	32.20 °C		89.96 °F
Return Gas Temperature	32.20 °C		89.96 °F
Ambient Temperature	32.20 °C		89.96 °F
Application
Evaporating Temp. Range	LBP		-34.40 °C to -12.20 °C
			(-29.92 F to 10.04 °F)
	Heat Pump		- to -
			(- to -)
Refrigerant	R134a
Refrigerant Flow Control	Capillary Tube
Compressor Cooling	Natural Convection
Compressor and Motor data
Compressor Type		Reciprocating
Displacement		8.1 cc.
Oil Type		Polyolester Oil
Oil Charge		300 cc.
Motor Type		R.S.I.R. ; 2 Pole 2,850 / - r/m
Voltage Range		187-264/- Volts 50/- Hz.
Winding Resistance at 25 ° C
Start		29.83 Ohms
Run		9.18 Ohms
Weight with Oil		9.01 Kg.
Weight with Oil and Accessories		9.21 Kg.
Electrical Components
Motor Protector
Type		External 3/4" Kg.
Model Number		KME660-7/C Kg.
Open / Close		90-100 / 70-52 ° C
1st Cycle trip at 25 ° C		10.2 Amps(main) - Amps(start)
Motor Starter
Type		Current Relay
Model Number		KME681-7
Pick Up (max.)		5.0 Amps
Drop Out (min.)		4.4 Amps
Terminal Cover		4040KMD901-12
Start Capacitor		- µF - VAC.
Disch Resistor for Start Cap		-
Run Capacitor		- µF - VAC.
Mounting Kit
Rubber Grommet		4007KMD905-3
Sleeve Grommet		3KMD903-2-Z
Washer		4023KEB387
