TECHNICAL SPECIFICATIONBA 5MHG-1

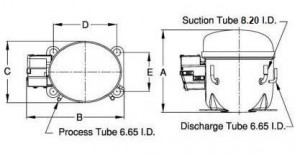

PRINCIPAL DIMENSIONS - MM
A: 191 mm.
B: 250 mm.
C: 160 mm.
D: 165 mm.
E: 102 mm.
HERMETIC COMPRESSOR BA 5MHG-1
BOM ID : 07X-A0
Electrical : 240 Volt 50 Hz 1 Phase 330 / 560 HP
View Full Information :
PDF Download
Nominal Performance
Cooling Capacity
330 / 560 Watts
1,126 / 1,911 BTU/Hr
284 / 482 Kcal/Hr
Power Input
246 / 331 Watts
Lock Rotor Amps
8 / 8 Amps
Max Continuous Current
- / - Amps
Rated Load Amps
1 / 2 Amps
COP
1 / 2 Watts / Watts
Testing Conditions
Condensing Temperature
54.40 °C
129.92 °F
Evaporating Temperature
-7 / 7 °C
20 / 45 °F
Liquid Temperature
46.10 °C
114.98 °F
Return Gas Temperature
35.00 °C
95.00 °F
Ambient Temperature
35.00 °C
95.00 °F
Application
Evaporating Range
MBP/HBP
: -20.00 °C to 10.00 °C (-4.00 F to 50.00 °F)
Heat Pump
: - to - (- to -)
