TECHNICAL SPECIFICATIONBA 6MHG-1

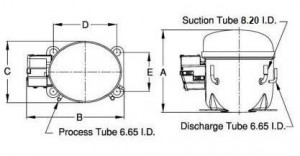

PRINCIPAL DIMENSIONS - MM
A: 191 mm.
B: 250 mm.
C: 160 mm.
D: 165 mm.
E: 102 mm.
HERMETIC COMPRESSOR BA 6MHG-1
BOM ID : 07Z-A0
Electrical : 240 Volt 50 Hz 1 Phase 370 / 660 HP
View Full Information :
PDF Download
Nominal Performance
Cooling Capacity
370 / 660 Watts
1,262 / 2,252 BTU/Hr
318 / 568 Kcal/Hr
Power Input
301 / 385 Watts
Lock Rotor Amps
12 / 12 Amps
Max Continuous Current
3 / - Amps
Rated Load Amps
2 / 2 Amps
COP
1 / 2 Watts / Watts
Testing Conditions
Condensing Temperature
54.40 °C
129.92 °F
Evaporating Temperature
-7 / 7 °C
20 / 45 °F
Liquid Temperature
46.10 °C
114.98 °F
Return Gas Temperature
35.00 °C
95.00 °F
Ambient Temperature
35.00 °C
95.00 °F
Application
Evaporating Range
MBP/HBP
: -20.00 °C to 10.00 °C (-4.00 F to 50.00 °F)
Heat Pump
: - to - (- to -)
