COMPRESSOR PRODUCTS :

TECHNICAL SPECIFICATIONBA 8MG-1

PRINCIPAL DIMENSIONS - MM

A: 191 mm.

B: 250 mm.

C: 160 mm.

D: 165 mm.

E: 102 mm.

HERMETIC COMPRESSOR BA 8MG-1

BOM ID : 08B-A0

Electrical : 240 Volt 50 Hz 1 Phase 550 / - HP

View Full Information : PDF Download

Nominal Performance

Cooling Capacity

550 / - Watts

1,877 / - BTU/Hr

473 / - Kcal/Hr

Power Input

420 / - Watts

Lock Rotor Amps

12 / - Amps

Max Continuous Current

4 / - Amps

Rated Load Amps

2 / - Amps

COP

1 / - Watts / Watts

Testing Conditions

Condensing Temperature

54.40 °C 129.92 °F

Evaporating Temperature

-7 / - °C 20 / - °F

Liquid Temperature

46.10 °C 114.98 °F

Return Gas Temperature

35.00 °C 95.00 °F

Ambient Temperature

35.00 °C 95.00 °F

Application

Evaporating Range

MBP

: -23.30 °C to -1.10 °C (-9.94 F to 30.02 °F)

Heat Pump

: - to - (- to -)

08B-A0

HERMETIC
COMPRESSOR
BA 8MG-1
BOM ID : 08B-A0
Low Torque Start

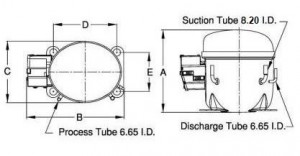

PRINCIPAL DIMENSIONS - MM

A: 191 mm.	B: 250 mm.	C: 160 mm.	D: 165 mm.	E: 102 mm.

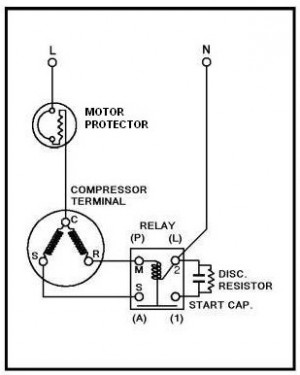

SCHEMATIC WIRING DIAGRAM C.S.I.R.

-

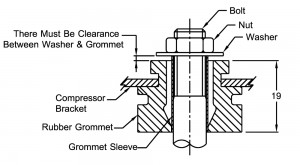

MOUNTING KIT

-

Electrical : 240 Volt 50 Hz 1 Phase 550 / - HP
Nominal Performance
Cooling Capacity		550 / - Watts
		1,876.60 / - BTU/Hr
		472.93 / - Kcal/Hr
Power Input		420 / - Watts
Lock Rotor Amps		12 / - Amps
Max Continuous Current		4 / - Amps
Rated Load Amps		2 / - Amps
COP		1 / - Watts / Watts
EER		4 / - Watts / Watts
Testing Conditions
Condensing Temperature	54.40 °C		129.92 °F
Evaporating Temperature	-6.70 / - °C		19.94 / - °F
Liquid Temperature	46.10 °C		114.98 °F
Return Gas Temperature	35.00 °C		95.00 °F
Ambient Temperature	35.00 °C		95.00 °F
Application
Evaporating Temp. Range	MBP		-23.30 °C to -1.10 °C
			(-9.94 F to 30.02 °F)
	Heat Pump		- to -
			(- to -)
Refrigerant	R22
Refrigerant Flow Control	Capillary Tube
Compressor Cooling	Fan
Compressor and Motor data
Compressor Type		Reciprocating
Displacement		7.57 cc.
Oil Type		Mineral Oil
Oil Charge		417 cc.
Motor Type		C.S.I.R. ; 2 Pole 2,800 / - r/m
Voltage Range		187-264/- Volts 50/- Hz.
Winding Resistance at 25 ° C
Start		21.30 Ohms
Run		7.00 Ohms
Weight with Oil		10.55 Kg.
Weight with Oil and Accessories		10.85 Kg.
Electrical Components
Motor Protector
Type		External 3/4" Kg.
Model Number		KME660-10/C Kg.
Open / Close		115-125 / 78-60 ° C
1st Cycle trip at 25 ° C		10.40 Amps(main) - Amps(start)
Motor Starter
Type		Current Relay
Model Number		KME684-1
Pick Up (max.)		6.40 Amps
Drop Out (min.)		5.60 Amps
Terminal Cover		KEA099
Start Capacitor		43-52 µF 330 VAC.
Disch Resistor for Start Cap		15000 Ohms 2 W
Run Capacitor		- µF - VAC.
Mounting Kit
Rubber Grommet		4007KMD905-1
Sleeve Grommet		3KMD903-1-Z
Washer		4023KEB387

Since we are constantly improving our product , the
specification are subject to change without notice.

REV. DATE 2025-01-28 C / N No. 0019/25
