TECHNICAL SPECIFICATIONBA 9MHY-1

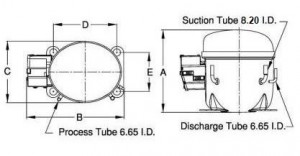

PRINCIPAL DIMENSIONS - MM
A: 191 mm.
B: 250 mm.
C: 160 mm.
D: 165 mm.
E: 102 mm.
HERMETIC COMPRESSOR BA 9MHY-1
BOM ID : 08D-A0

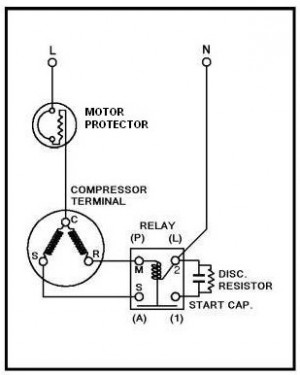

Electrical : 240 Volt 50 Hz 1 Phase 445 / 793 HP
View Full Information :
PDF Download
Nominal Performance
Cooling Capacity
445 / 793 Watts
1,518 / 2,706 BTU/Hr
383 / 682 Kcal/Hr
Power Input
299 / 419 Watts
Lock Rotor Amps
9 / 9 Amps
Max Continuous Current
3 / - Amps
Rated Load Amps
2 / 2 Amps
COP
1 / 2 Watts / Watts
Testing Conditions
Condensing Temperature
54.40 °C
129.92 °F
Evaporating Temperature
-7 / 7 °C
20 / 45 °F
Liquid Temperature
46.10 °C
114.98 °F
Return Gas Temperature
35.00 °C
95.00 °F
Ambient Temperature
35.00 °C
95.00 °F
Application
Evaporating Range
MBP/HBP
: -20.00 °C to 10.00 °C (-4.00 F to 50.00 °F)
Heat Pump
: - to - (- to -)
