TECHNICAL SPECIFICATIONKA 5560EXG

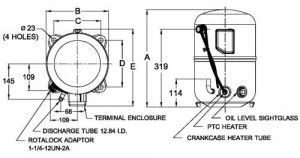

PRINCIPAL DIMENSIONS - MM
A: 399 mm.
B: 246 mm.
C: 190 mm.
D: 190 mm.
E: 313 mm.
HERMETIC COMPRESSOR KA 5560EXG
BOM ID : 032-A0
Electrical : 380-420 Volt 50 Hz 3 Phase 15,534 / 16,999 HP
View Full Information :
PDF Download
Nominal Performance
Cooling Capacity
15,534 / 16,999 Watts
53,002 / 58,001 BTU/Hr
13,357 / 14,617 Kcal/Hr
Power Input
4,736 / 5,466 Watts
Lock Rotor Amps
62 / 70 Amps
Max Continuous Current
- / - Amps
Rated Load Amps
9 / 10 Amps
COP
3 / 3 Watts / Watts
Testing Conditions
Condensing Temperature
54.40 °C
129.92 °F
Evaporating Temperature
7 / - °C
45 / - °F
Liquid Temperature
46.10 °C
114.98 °F
Return Gas Temperature
35.00 °C
95.00 °F
Ambient Temperature
35.00 °C
95.00 °F
Application
Evaporating Range
HBP
: 0.00 °C to 13.00 °C (32.00 F to 55.40 °F)
Heat Pump
: - to - (- to -)
