TECHNICAL SPECIFICATIONWJ 22LZ-1

PRINCIPAL DIMENSIONS - MM

A: 266 mm.

B: 223 mm.

C: 203 mm.

D: 122 mm.

E: 239 mm.

HERMETIC COMPRESSOR WJ 22LZ-1

BOM ID : 75G-A0

Electrical : 240 Volt 50 Hz 1 Phase 871 / - HP

View Full Information : PDF Download

Nominal Performance

Cooling Capacity

871 / - Watts

2,972 / - BTU/Hr

749 / - Kcal/Hr

Power Input

638 / - Watts

Lock Rotor Amps

30 / - Amps

Max Continuous Current

6 / - Amps

Rated Load Amps

3 / - Amps

COP

1 / - Watts / Watts

Testing Conditions

Condensing Temperature

54.40 °C 129.92 °F

Evaporating Temperature

-23 / - °C -10 / - °F

Liquid Temperature

32.20 °C 89.96 °F

Return Gas Temperature

32.20 °C 89.96 °F

Ambient Temperature

32.20 °C 89.96 °F

Application

Evaporating Range

LBP

: -35.00 °C to -10.00 °C (-31.00 F to 14.00 °F)

Heat Pump

: - to - (- to -)

75G-A0

HERMETIC
COMPRESSOR
WJ 22LZ-1
BOM ID : 75G-A0
Low Torque Start

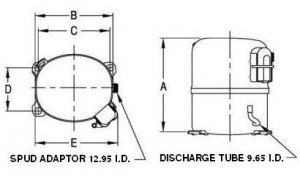

PRINCIPAL DIMENSIONS - MM

A: 266 mm.	B: 223 mm.	C: 203 mm.	D: 122 mm.	E: 239 mm.

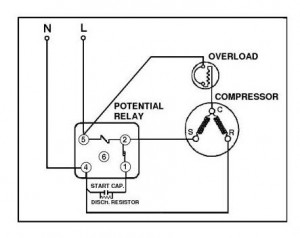

SCHEMATIC WIRING DIAGRAM C.S.R.

High Torque Start

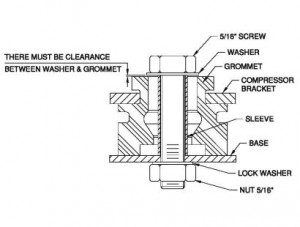

MOUNTING KIT

-

Electrical : 240 Volt 50 Hz 1 Phase 871 / - HP
Nominal Performance
Cooling Capacity		871 / - Watts
		2,971.85 / - BTU/Hr
		748.95 / - Kcal/Hr
Power Input		638 / - Watts
Lock Rotor Amps		30 / - Amps
Max Continuous Current		6 / - Amps
Rated Load Amps		3 / - Amps
COP		1 / - Watts / Watts
EER		5 / - Watts / Watts
Testing Conditions
Condensing Temperature	54.40 °C		129.92 °F
Evaporating Temperature	-23.30 / - °C		-9.94 / - °F
Liquid Temperature	32.20 °C		89.96 °F
Return Gas Temperature	32.20 °C		89.96 °F
Ambient Temperature	32.20 °C		89.96 °F
Application
Evaporating Temp. Range	LBP		-35.00 °C to -10.00 °C
			(-31.00 F to 14.00 °F)
	Heat Pump		- to -
			(- to -)
Refrigerant	R404A
Refrigerant Flow Control	Capillary Tube
Compressor Cooling	Fan
Compressor and Motor data
Compressor Type		Reciprocating
Displacement		21.5 cc.
Oil Type		Polyolester Oil
Oil Charge		850 cc.
Motor Type		C.S.R. ; 2 Pole 2,850 / - r/m
Voltage Range		198-264/- Volts 50/- Hz.
Winding Resistance at 25 ° C
Start		6.22 Ohms
Run		2.95 Ohms
Weight with Oil		20.9 Kg.
Weight with Oil and Accessories		21.54 Kg.
Electrical Components
Motor Protector
Type		External 3/4" Kg.
Model Number		KME 664-19/C Kg.
Open / Close		100-110 / 70-52 ° C
1st Cycle trip at 25 ° C		20.4 Amps(main) - Amps(start)
Motor Starter
Type		Potential Relay
Model Number		4043KGE681-3
Pick Up (max.)		190-215 Volts
Drop Out (min.)		40.00-105.00 Volts
Terminal Cover		4040KMD901-1
Start Capacitor		108-130 µF 330 VAC.
Disch Resistor for Start Cap		39000 Ohms 2 W
Run Capacitor		20 µF 475 VAC.
Mounting Kit
Rubber Grommet		4007KGM905-1
Sleeve Grommet		3KGM903-1-Z
Washer		-

Since we are constantly improving our product , the
specification are subject to change without notice.

REV. DATE 2025-01-28 C / N No. 0019/25

Certificate Marks

COMPRESSOR PERFORMANCE TABLE
