COMPRESSOR PRODUCTS :

TECHNICAL SPECIFICATIONCA 2435Z-2

PRINCIPAL DIMENSIONS - MM

A: 213 mm.

B: 229 mm.

C: 160 mm.

D: 165 mm.

E: 102 mm.

HERMETIC COMPRESSOR CA 2435Z-2

BOM ID : 30S-A1

Electrical : 208-230 Volt 60 Hz 1 Phase 995 / - HP

View Full Information : PDF Download

Nominal Performance

Cooling Capacity

995 / - Watts

3,395 / - BTU/Hr

856 / - Kcal/Hr

Power Input

917 / - Watts

Lock Rotor Amps

28 / - Amps

Max Continuous Current

- / - Amps

Rated Load Amps

4 / - Amps

COP

1 / - Watts / Watts

Testing Conditions

Condensing Temperature

54.40 °C 129.92 °F

Evaporating Temperature

-23 / - °C -10 / - °F

Liquid Temperature

32.20 °C 89.96 °F

Return Gas Temperature

32.20 °C 89.96 °F

Ambient Temperature

32.20 °C 89.96 °F

Application

Evaporating Range

LBP

: -40.00 °C to -12.20 °C (-40.00 F to 10.04 °F)

Heat Pump

: - to - (- to -)

30S-A1

HERMETIC
COMPRESSOR
CA 2435Z-2
BOM ID : 30S-A1
Low Torque Start

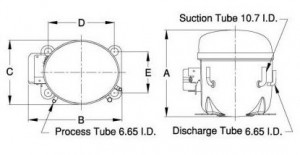

PRINCIPAL DIMENSIONS - MM

A: 213 mm.	B: 229 mm.	C: 160 mm.	D: 165 mm.	E: 102 mm.

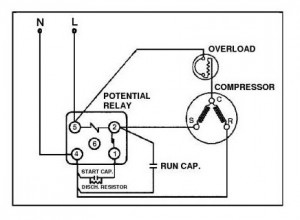

SCHEMATIC WIRING DIAGRAM C.S.R.

-

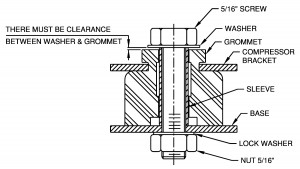

MOUNTING KIT

-

Electrical : 208-230 Volt 60 Hz 1 Phase 995 / - HP
Nominal Performance
Cooling Capacity		995 / - Watts
		3,394.94 / - BTU/Hr
		855.58 / - Kcal/Hr
Power Input		917 / - Watts
Lock Rotor Amps		28 / - Amps
Max Continuous Current		- / - Amps
Rated Load Amps		4 / - Amps
COP		1 / - Watts / Watts
EER		4 / - Watts / Watts
Testing Conditions
Condensing Temperature	54.40 °C		129.92 °F
Evaporating Temperature	-23.30 / - °C		-9.94 / - °F
Liquid Temperature	32.20 °C		89.96 °F
Return Gas Temperature	32.20 °C		89.96 °F
Ambient Temperature	32.20 °C		89.96 °F
Application
Evaporating Temp. Range	LBP		-40.00 °C to -12.20 °C
			(-40.00 F to 10.04 °F)
	Heat Pump		- to -
			(- to -)
Refrigerant	R404A
Refrigerant Flow Control	Capillary Tube
Compressor Cooling	Fan
Compressor and Motor data
Compressor Type		Reciprocating
Displacement		20.00 cc.
Oil Type		Polyolester Oil
Oil Charge		457 cc.
Motor Type		C.S.R. ; 2 Pole 3,500 / - r/m
Voltage Range		117-250/- Volts 60/- Hz.
Winding Resistance at 25 ° C
Start		6.64 Ohms
Run		2.25 Ohms
Weight with Oil		12.74 Kg.
Weight with Oil and Accessories		13.89 Kg.
Electrical Components
Motor Protector
Type		External 3/4" Kg.
Model Number		KMP660-42/CD Kg.
Open / Close		115-125 / 78.60 ° C
1st Cycle trip at 25 ° C		21.00 Amps(main) - Amps(start)
Motor Starter
Type		Potential Relay
Model Number		4043KME692-2 (RVA6M6D)
Pick Up (max.)		293-268 Volts
Drop Out (min.)		60-135 Volts
Terminal Cover		4040KMD901-12
Start Capacitor		88-106 µF 330 VAC.
Disch Resistor for Start Cap		15000 Ohms 2 W
Run Capacitor		20 µF 450 VAC.
Mounting Kit
Rubber Grommet		4007KGM905-2
Sleeve Grommet		3KGM903-Z
Washer		4023KEB387

Since we are constantly improving our product , the
specification are subject to change without notice.

REV. DATE 2021-07-31 C / N No. 0186/21
