TECHNICAL SPECIFICATIONKA 9522ZXG

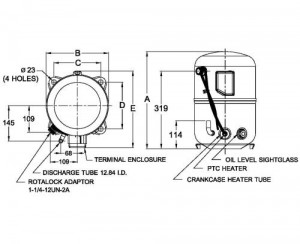

PRINCIPAL DIMENSIONS - MM
A: 399 mm.
B: 246 mm.
C: 190 mm.
D: 190 mm.
E: 313 mm.
HERMETIC COMPRESSOR KA 9522ZXG
BOM ID : 038-A0

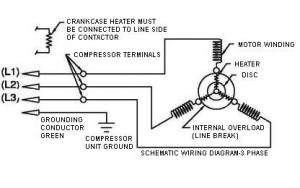

Electrical : 380-420 Volt 50 Hz 3 Phase 5,598 / 6,536 HP
View Full Information :
PDF Download
Nominal Performance
Cooling Capacity
5,598 / 6,536 Watts
19,100 / 22,301 BTU/Hr
4,814 / 5,620 Kcal/Hr
Power Input
2,625 / 3,035 Watts
Lock Rotor Amps
40 / 43 Amps
Max Continuous Current
- / - Amps
Rated Load Amps
6 / 6 Amps
COP
2 / 2 Watts / Watts
Testing Conditions
Condensing Temperature
54.40 °C
129.92 °F
Evaporating Temperature
-7 / - °C
20 / - °F
Liquid Temperature
46.10 °C
114.98 °F
Return Gas Temperature
35.00 °C
95.00 °F
Ambient Temperature
35.00 °C
95.00 °F
Application
Evaporating Range
MBP
: -15.00 °C to 13.00 °C (5.00 F to 55.40 °F)
Heat Pump
: - to - (- to -)
