TECHNICAL SPECIFICATIONLA 5610EXI

PRINCIPAL DIMENSIONS - MM

A: 454 mm.

B: 384 mm.

C: 225 mm.

D: 225 mm.

E: 334 mm.

HERMETIC COMPRESSOR LA 5610EXI

BOM ID : 028-A0

Electrical : 380-420 Volt 60 Hz 3 Phase 30,770 / - HP

View Full Information : PDF Download

Nominal Performance

Cooling Capacity

30,770 / - Watts

104,987 / - BTU/Hr

26,458 / - Kcal/Hr

Power Input

10,600 / - Watts

Lock Rotor Amps

120 / - Amps

Max Continuous Current

- / - Amps

Rated Load Amps

19 / - Amps

COP

3 / - Watts / Watts

Testing Conditions

Condensing Temperature

54.40 °C 129.92 °F

Evaporating Temperature

7 / - °C 45 / - °F

Liquid Temperature

46.10 °C 114.98 °F

Return Gas Temperature

35.00 °C 95.00 °F

Ambient Temperature

35.00 °C 95.00 °F

Application

Evaporating Range

HBP, A/C

: 0.00 °C to 13.00 °C (32.00 F to 55.40 °F)

Heat Pump

: - to - (- to -)

028-A0

HERMETIC
COMPRESSOR
LA 5610EXI
BOM ID : 028-A0
Low Torque Start

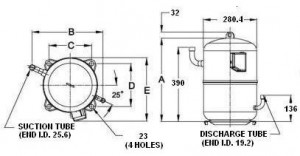

PRINCIPAL DIMENSIONS - MM

A: 454 mm.	B: 384 mm.	C: 225 mm.	D: 225 mm.	E: 334 mm.

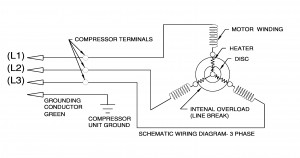

SCHEMATIC WIRING DIAGRAM 3 PHASE

-

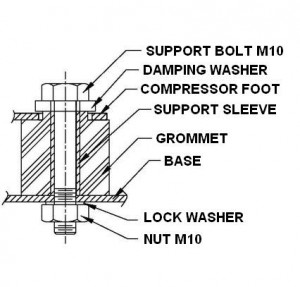

MOUNTING KIT

-

Electrical : 380-420 Volt 60 Hz 3 Phase 30,770 / - HP
Nominal Performance
Cooling Capacity		30,770 / - Watts
		104,987.24 / - BTU/Hr
		26,458.48 / - Kcal/Hr
Power Input		10,600 / - Watts
Lock Rotor Amps		120 / - Amps
Max Continuous Current		- / - Amps
Rated Load Amps		19 / - Amps
COP		3 / - Watts / Watts
EER		10 / - Watts / Watts
Testing Conditions
Condensing Temperature	54.40 °C		129.92 °F
Evaporating Temperature	7.20 / - °C		44.96 / - °F
Liquid Temperature	46.10 °C		114.98 °F
Return Gas Temperature	35.00 °C		95.00 °F
Ambient Temperature	35.00 °C		95.00 °F
Application
Evaporating Temp. Range	HBP, A/C		0.00 °C to 13.00 °C
			(32.00 F to 55.40 °F)
	Heat Pump		- to -
			(- to -)
Refrigerant	R22
Refrigerant Flow Control	Capillary tube/Expansion valve
Compressor Cooling	Fan
Compressor and Motor data
Compressor Type		Reciprocating
Displacement		197 cc.
Oil Type		Alkylbenzene
Oil Charge		3,500 cc.
Motor Type		3 PHASE ; 2 Pole 3,450 / - r/m
Voltage Range		342-418/- Volts 60/- Hz.
Winding Resistance at 25 ° C
Start		- Ohms
Run		- Ohms
Weight with Oil		58.9 Kg.
Weight with Oil and Accessories		59.22 Kg.
Electrical Components
Motor Protector
Type		Internal Overload Kg.
Model Number		4042KLE657-2 Kg.
Open / Close		135-145 / 70-52 ° C
1st Cycle trip at 25 ° C		90 Amps(main) - Amps(start)
Motor Starter
Type		-
Model Number		-
Pick Up (max.)		- Amps
Drop Out (min.)		- Amps
Terminal Cover		4040KLD901
Start Capacitor		- µF - VAC.
Disch Resistor for Start Cap		-
Run Capacitor		- µF - VAC.
Mounting Kit
Rubber Grommet		4007KLD905
Sleeve Grommet		4023KLD903
Washer		-

Since we are constantly improving our product , the
specification are subject to change without notice.

REV. DATE 2011-03-18 C / N No. 0096/11
