TECHNICAL SPECIFICATIONKA 2514ZXG

PRINCIPAL DIMENSIONS - MM

A: 399 mm.

B: 246 mm.

C: 190 mm.

D: 190 mm.

E: 313 mm.

HERMETIC COMPRESSOR KA 2514ZXG

BOM ID : 091-A0

Electrical : 380-420 Volt 50 Hz 3 Phase 3,740 / - HP

View Full Information : PDF Download

Nominal Performance

Cooling Capacity

3,740 / - Watts

12,761 / - BTU/Hr

3,216 / - Kcal/Hr

Power Input

2,370 / - Watts

Lock Rotor Amps

76 / - Amps

Max Continuous Current

- / - Amps

Rated Load Amps

6 / - Amps

COP

2 / - Watts / Watts

Testing Conditions

Condensing Temperature

54.40 °C 129.92 °F

Evaporating Temperature

-23 / - °C -10 / - °F

Liquid Temperature

32.20 °C 89.96 °F

Return Gas Temperature

32.20 °C 89.96 °F

Ambient Temperature

32.20 °C 89.96 °F

Application

Evaporating Range

LBP

: -34.40 °C to -12.20 °C (-29.92 F to 10.04 °F)

Heat Pump

: - / - (- / -)

091-A0

HERMETIC
COMPRESSOR
KA 2514ZXG
BOM ID : 091-A0
Low Torque Start

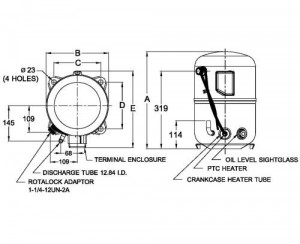

PRINCIPAL DIMENSIONS - MM

A: 399 mm.	B: 246 mm.	C: 190 mm.	D: 190 mm.	E: 313 mm.

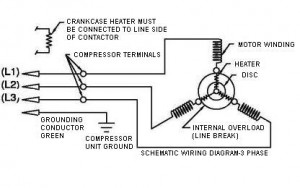

SCHEMATIC WIRING DIAGRAM 3 PHASE

-

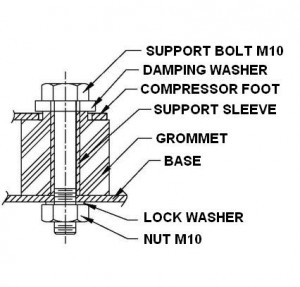

MOUNTING KIT

-

Electrical : 380-420 Volt 50 Hz 3 Phase 3,740 / - HP
Nominal Performance
Cooling Capacity		3,740 / - Watts
		12,760.88 / - BTU/Hr
		3,215.95 / - Kcal/Hr
Power Input		2,370 / - Watts
Lock Rotor Amps		76 / - Amps
Max Continuous Current		- / - Amps
Rated Load Amps		6 / - Amps
COP		2 / - Watts / Watts
EER		5 / - Watts / Watts
Testing Conditions
Condensing Temperature	54.40 °C		129.92 °F
Evaporating Temperature	-23.30 / - °C		-9.94 / - °F
Liquid Temperature	32.20 °C		89.96 °F
Return Gas Temperature	32.20 °C		89.96 °F
Ambient Temperature	32.20 °C		89.96 °F
Application
Evaporating Temp. Range	LBP		-34.40 °C to -12.20 °C
			(-29.92 F to 10.04 °F)
	Heat Pump		- / -
			(- / -)
Refrigerant	R404A
Refrigerant Flow Control	Capillary tube/Expansion valve
Compressor Cooling	Fan
Compressor and Motor data
Compressor Type		Reciprocating
Displacement		90.00 cc.
Oil Type		Polyolester Oil
Oil Charge		2030 cc.
Motor Type		3 PHASE ; 2 Pole 2850 / - r/m
Voltage Range		342-462/- Volts 50/- Hz.
Winding Resistance at 25 ° C
Start		- Ohms
Run		- Ohms
Weight with Oil		44.00 Kg.
Weight with Oil and Accessories		44.40 Kg.
Electrical Components
Motor Protector
Type		Internal Overload Kg.
Model Number		4042KLE657-1 Kg.
Open / Close		135-145 / 70-52 ° C
1st Cycle trip at 25 ° C		68.00 Amps(main) - Amps(start)
Motor Starter
Type		-
Model Number		-
Pick Up (max.)		- Amps
Drop Out (min.)		- Amps
Terminal Cover		4040KLD901
Start Capacitor		- µF - VAC.
Disch Resistor for Start Cap		-
Run Capacitor		- µF - VAC.
Mounting Kit
Rubber Grommet		4007KLD905
Sleeve Grommet		4023KLD903
Washer		-

Since we are constantly improving our product , the
specification are subject to change without notice.

REV. DATE 2021-05-20 C / N No. 0132/21

Certificate Marks

COMPRESSOR PERFORMANCE TABLE
