TECHNICAL SPECIFICATIONLA 5610EXG

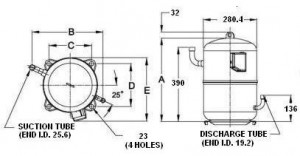

PRINCIPAL DIMENSIONS - MM
A: 454 mm.
B: 384 mm.
C: 225 mm.
D: 225 mm.
E: 334 mm.
HERMETIC COMPRESSOR LA 5610EXG
BOM ID : 005-A0
Electrical : 380-420 Volt 50 Hz 3 Phase 25,498 / 30,774 HP
View Full Information :
PDF Download
Nominal Performance
Cooling Capacity
25,498 / 30,774 Watts
86,999 / 105,001 BTU/Hr
21,925 / 26,462 Kcal/Hr
Power Input
8,790 / 10,600 Watts
Lock Rotor Amps
80 / 80 Amps
Max Continuous Current
- / - Amps
Rated Load Amps
16 / 19 Amps
COP
3 / 3 Watts / Watts
Testing Conditions
Condensing Temperature
54.40 °C
129.92 °F
Evaporating Temperature
7 / - °C
45 / - °F
Liquid Temperature
46.10 °C
114.98 °F
Return Gas Temperature
35.00 °C
95.00 °F
Ambient Temperature
35.00 °C
95.00 °F
Application
Evaporating Range
HBP, A/C
: 0.00 °C to 13.00 °C (32.00 F to 55.40 °F)
Heat Pump
: - to - (- to -)
